Updating Embedded Linux Devices: Mender

This post if part of the “Updating embedded Linux devices” series, previous posts are:

Next up on my software update journey is:

My introduction with Mender was back in 2016. They where sponsors of ELCE (Embedded Linux Conference Europe) 2016 and that is how first found a link to mender.io. I had an interest for firmware updates on embedded Linux already back then I had to try it out.

Back then they only supported QEMU and Beaglebone Black machines but I wanted to test this out on my Raspberry Pi. Which lead to me porting Mender to Rasbperry Pi boards and pushing it upstream. I have since then been a community member of the project with various contributions.

But what is Mender?

Mender is an open-source over-the-air firmware updater for embedded Linux devices, written in Golang. There is a blog post that reasons on the choice of Golang over C. Mender consists of a client that runs on your device but also a complete server side solution in which you can manage your software deployments, which also open-source. Mender is licensed under Apache 2.0.

Mender was developed by a commercial entity, https://northern.tech/. They are still the main contributers to the project, though the community side of the project has also grown and is quite active as well. This is a quite common layout now days, and in my opinion it is handled very well in this case. Mender has 35 repositories on their github organization, which includes client, server, QA and tooling. The project has also an open issue tracker where you can get insight in what is currently worked on and external users can create new issues. All this means that the entity behind Mender is serious with this being a fully open-source project.

Lets get technical.

Mender is not a framework, compared to the previous project I covered. Instead Mender aims to be a robust out-of-the box end-to-end solution to deploy a “Dual Copy” update strategy on your device.

Key features are:

  • Deployment management server part of the project
  • Fully atomic image based updates
  • Secure TLS communication between client/server
  • Automated rollback implemented out-of-the box
  • Support for signed update images
  • Support for compressed update images which are streamed from server straight to storage medium
  • Scripting support for custom application actions and control of update process
  • Support of resuming download of update image, in case of unstable data connections
  • Support for writing eMMC/SD and UBI volumes.
  • Comprehensive QA system on reference boards

There is a lot more which can be found here.

As I have mentioned earlier, Mender deploys a “Dual Copy” update strategy which means that it is only able to do full image updates.

Mender has the following requirements:

  • Mender client is roughly 7 MB
  • Partition layout of you storage medium (two partitions for root file-system, and one data partition (persistent data storage))
  • Mender relies on U-boot (2014.07 or newer) for rollback and to switch active partition
  • Yocto Project, in theory you could install Mender independently but you get a lot when you use their Yocto layers.

There is a blog post on how to integrate Mender on non-Yocto system. There is no need for me to duplicate this here, this means that we will start off using Yocto.

My idea is to build a system image for my Beaglebone Black using Yocto and then:

  • Try out the Mender client on target and perform updates using the standalone mode, that is without utilizing the Mender server component
  • Try out OTA updates using Mender server component

Lets start of with setting up our Yocto environment:

Before I can start baking an image I must add some configuration options to local.conf.

First off we must set our desired machine.

To add all the features that Mender has to offer we must add the following.

Mender currently relies on systemd for a seamless experience, this means that a systemd service is provided by default for the Mender client and meta-mender-demo has some additional dependencies on systemd-networkd. But there is not really a “hard” requirement to run systemd. Lets keep it simple and make sure that systemd is used in our setup as well.

When we bake our image a Mender artifact will be created for us. This is the file that we eventually will provide to the Mender client to perform the update. This artifact contains version information that is set during build time, and it is required to set this in our local.conf. “Different” images must have a different name/version because Mender uses this string to rapport what software the device is running an will skip updating if device is running an image with the same name/version.

Now we can start baking

The Yocto setup process is also very well documented on Mender documentation site.

From the build output there are two files that are of interest for us.

  • *.sdimg – This is the complete disk image that is partitioned according to Mender requirements and this will be written to our device as a first step. The partions that are created are:
    • bootpart (vfat) – Contains U-boot and MLO for the Beaglebone Black. This part is optional as some boards store the bootloader at a certain offset and not on a vfat partition
    • rootfsA – Our root file-system that we built using core-image-full-cmdline and this is what will initially be booted.
    • rootfsB – Same as above but this part will initially be inactive and this is where we will write our next update.
    • data – Persistent data partition that is not effected by updates. This part is required as the Mender client will store some data here as well while performing an update.
  • *.mender – This is the file that we provide to the Mender client to perform an update. The contents is simply a filesystem image, plus some additional meta data. See here for more info on the Mender artifact file-format.

This time around I will be using the uSD card on my Beaglebone and not the on-board eMMC. This is because by default Mender assumes that our storage device is mmcblk0 which is the uSD interface on the Beaglebone Black. This is of course configurable and we could have easily have changed this, but lets stick to the defaults and use the uSD.

Lets write the sdimg to a uSD card

Eject and inject the uSD to the BBB and power-on. Once booted we will see that we now have the Mender client installed

Mender is also already running in “daemon” mode.

Daemon mode is used when you connect to a Mender server to do OTA updates, we can keep it running even though we will not be using this part yet.

We can read-out the artifact info that we setup in our Yocto environment.

We can also see that our uSD is partitioned according to what Mender expects.

If we inspect what is actually mounted.

We can see that mmcblk0p2 is the current active root file-system and that makes the mmcblk0p3 the inactive one. We can also see that it has mounted mmcblk0p4 on /data and that is our persistent partition and anything we store there will be left un-touched by updates. The bootpart is also mounted to /uboot.

I earlier mentioned that I wanted to perform an update using the standalone mode. So lets do that. We must somehow provide the .mender file to the Mender client, I copied it to the persistent data partition (I was lacking network at the time of writing as we could have also shared the file with a simple HTTP server).

Now we can run a update.

Now we must reboot so that it can switch root file-system parts.

And now we can see that it has changed root file-system part, making the initial mmcblk0p2 the inactive one.

One interesting thing though.

We still have the same artifact name but I earlier said that it will skip updating if it sees that the artifact matches what is already running on the device. This is only true when performing OTA updates, and this check is skipped when running updates in standalone mode.

There is one last step to perform to actually make this persistent.

If we do not “commit” the update Mender would have rolled back to the previous part on the next reboot. This is the mechanism that is used to prevent corrupt/bad software updates. If the new update does not boot, it will not be able to run mender -commit (obviously) and that will make sure that Mender rolls back to the previous partition that is known to be good as it was the one that initiated the update after all. One can also run addition tests before running the mender -commit command, but this is highly application specific.

This was simple enough. Now I would like to try out OTA updates. And for that we need a server for our devices to connect to. I am going to be a bit lazy here and use the Mender Hosted (Beta) server for which I have access and I am allowed to have 10 device connected to it.

It is well documented on how you setup your own server and Mender provides two examples:

To get my BBB to connect to my instance of the Mender server we need to go back to Yocto and do some addition configuration.

We must setup the URL.

And we must the provide the tenant token (this requires an account on hosted.mender.io).

The tenant token is only used the Hosted Mender (beta). For the Demo and Production environments the /etc/mender/server.crt file is used to authenticate the device to your server. The server.crt for the demo environment is provided by default without any changes. For the production environment you must replace the demo server.crt with your custom one that you generated when you setup the environment.

And now we must re-bake our image to make sure that this is added.

Once it has finished we will use the sdimg once again to start of fresh.

Eject and inject to the BBB and power on.

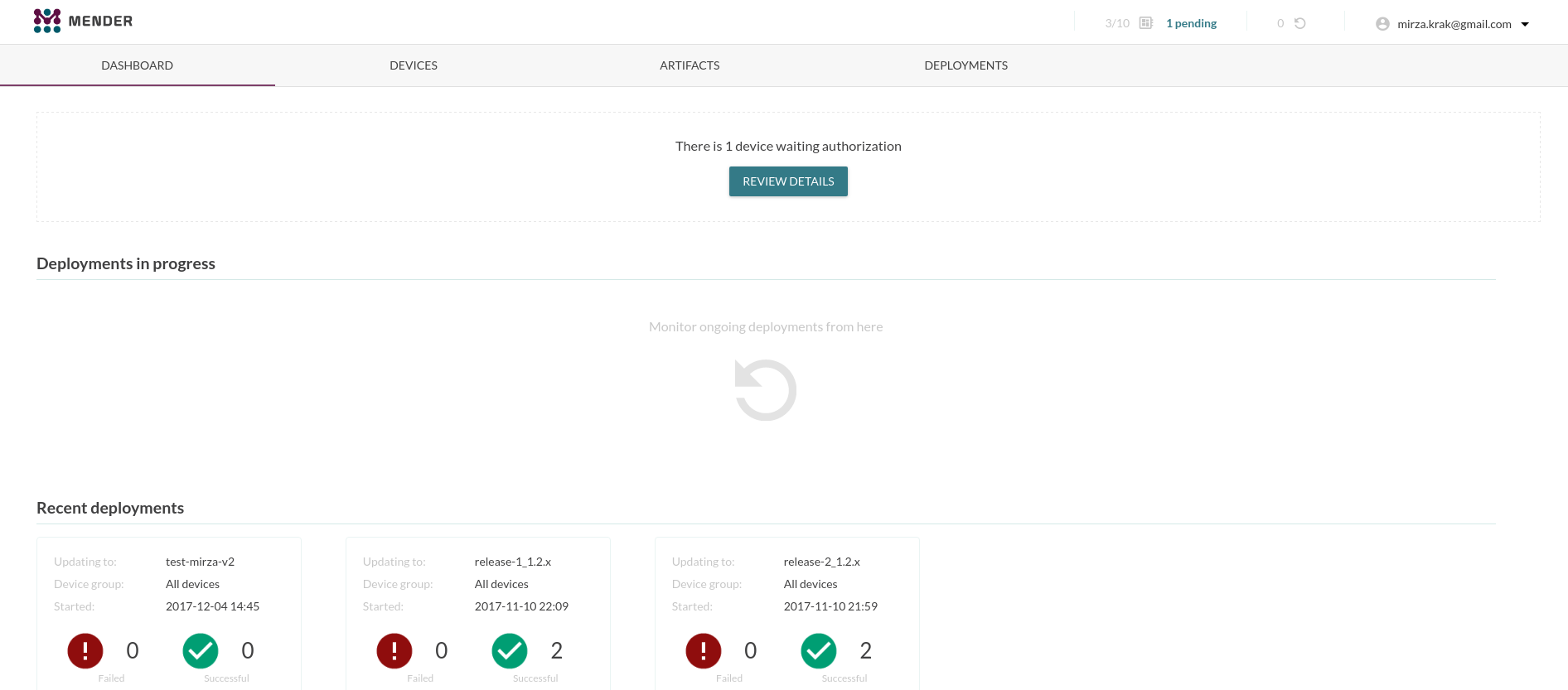

Now I made sure that my BBB also has a Internet connection and I can see that it was able to connect to my server.

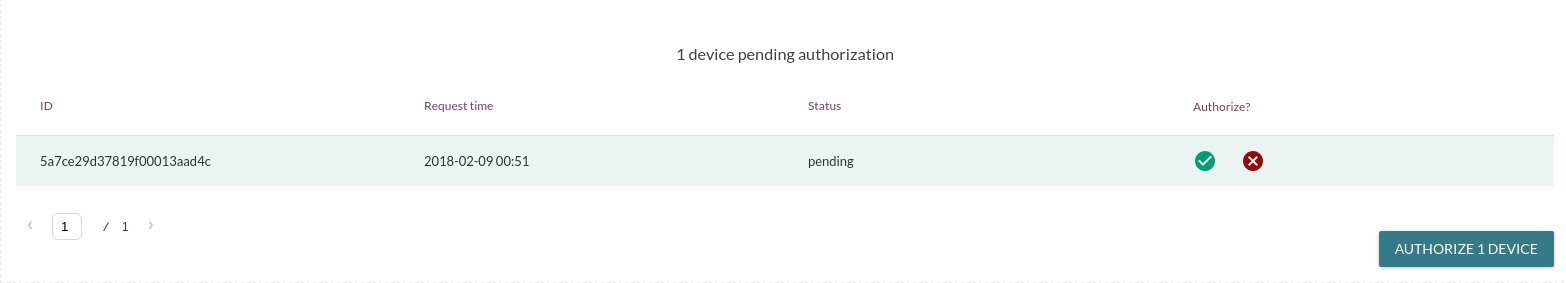

Before we can deploy any updates to device we must first authorize the device and give it full access to the server. This is a one-time thing, the next time the device connects to the server it will have full access. There are options on the server to “block” or “decommission” devices en-forcing the authorization step once again.

But I need to move to the “Devices” page and click the green button to accept my BBB.

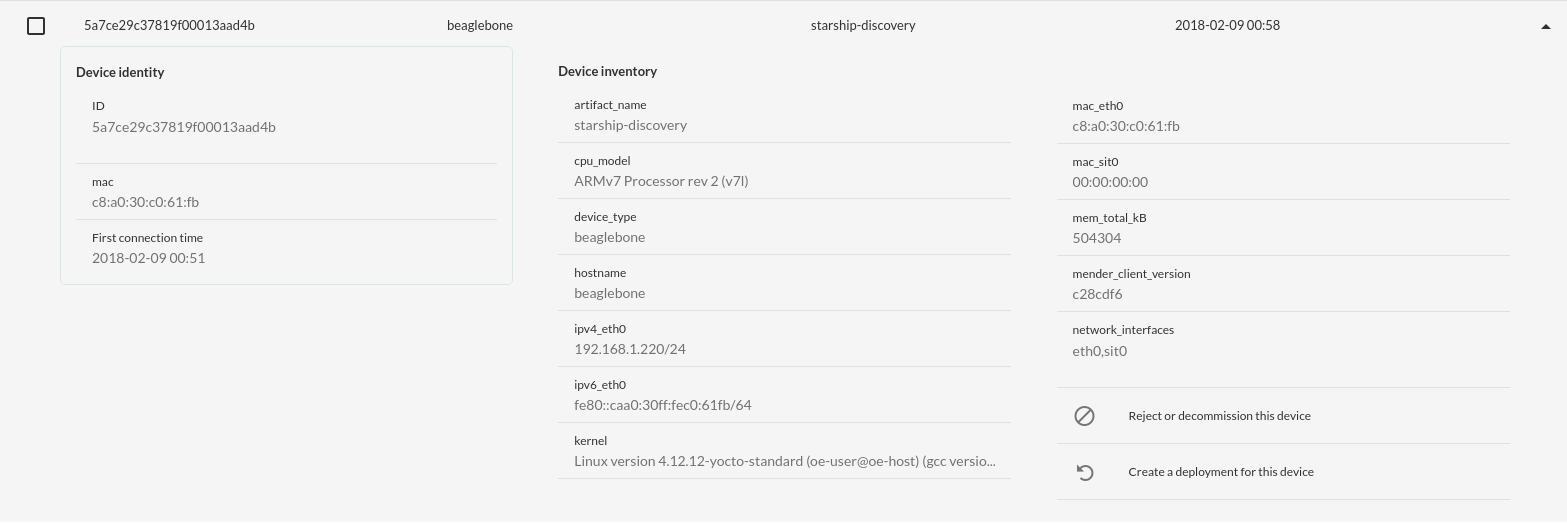

Once I have done that I am able to get some additional information about my device and here we see that we are running the starship-discovery artifact on a Beaglebone Black.

To be able to deploy new software we must upload the artifacts (.mender files) to the server under the “Artifacts” view. Lets start of with uploading the starship-discovery artifact that was created in our latest build. Note that we can not deploy this at the current state as this is already what is present on our device.

Now we must create a second artifact that is not starship-discovery in our Yocto environment. We update the MENDER_ARTIFACT_NAME.

And bake.

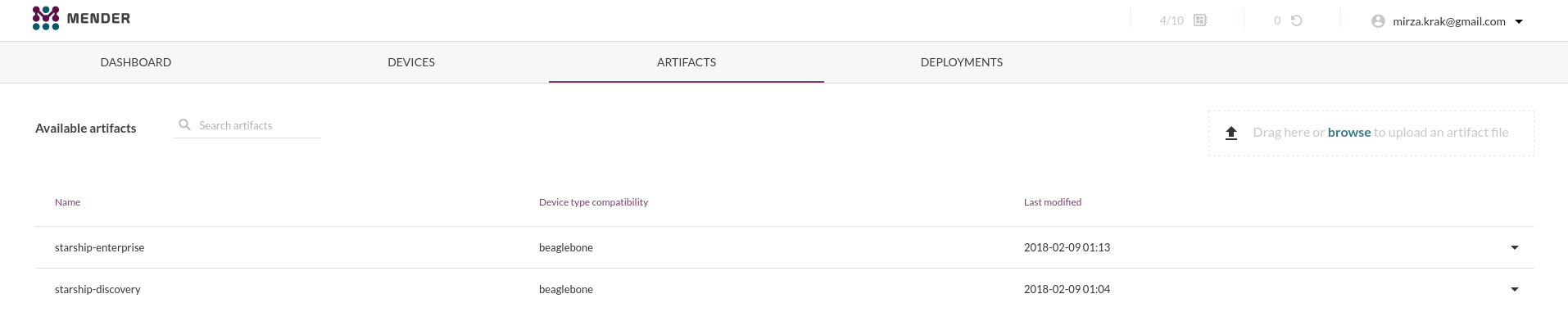

Now we can upload the .mender file that was generated with above build. And the result on the server looks like this.

And now I can start updating my BBB since I have two different images (though the content is the same). I am not going to do a “step-by-step” instruction on how to do deployments as it is pretty straightforward and I do not want to spam this post with screen-shoots (already to late?).

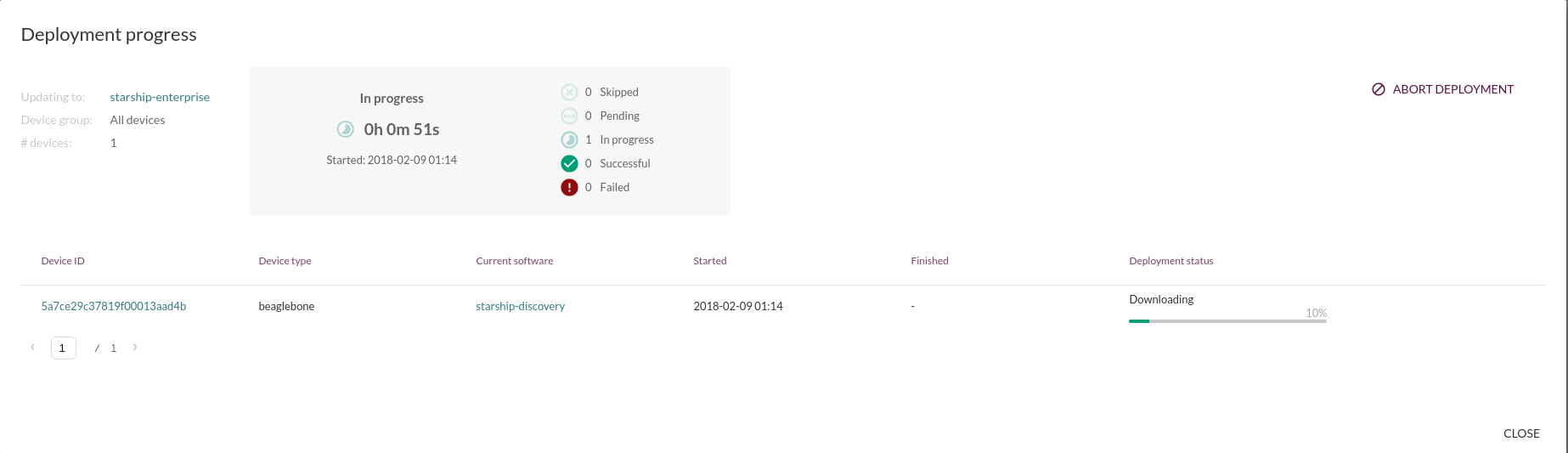

But this is what it looks like once the deployments has started.

Pretty neat overview of what is going on and we can follow the state changes live as it progresses trough the update.

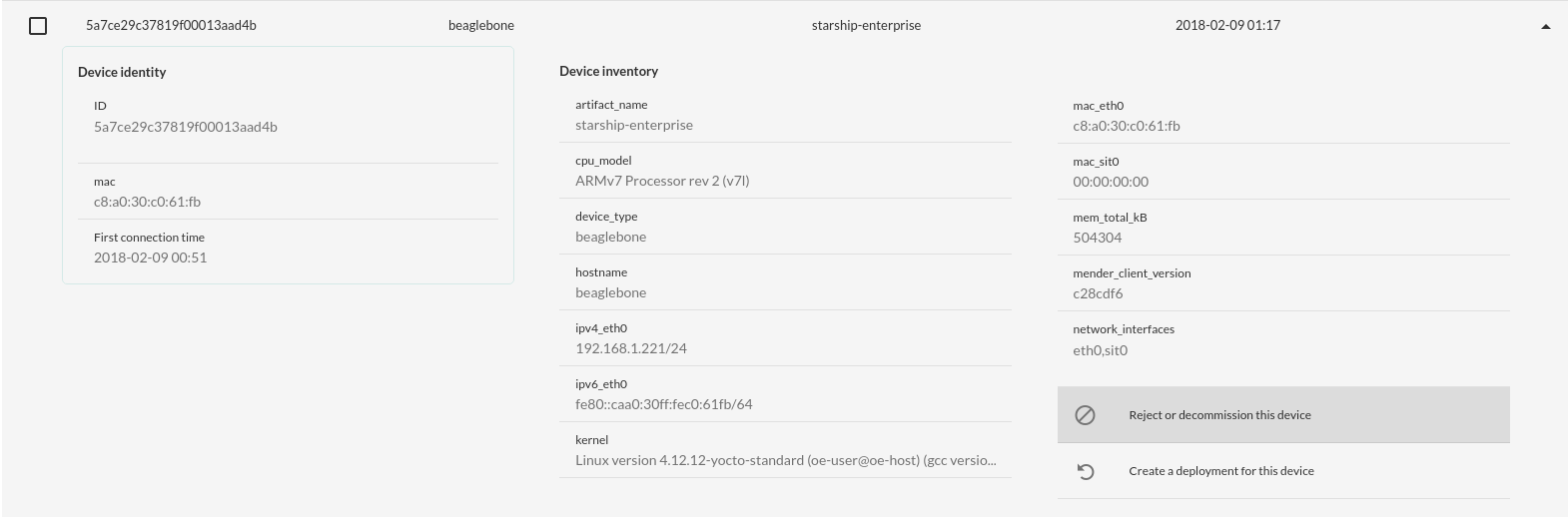

And if we go back to the “Devices” page once the deployment has finished we can now see that my BBB is running the starship-enterprise artifact.

Conclusion

The project has fantastic documentation and if I have caught your interest continue reading here.

Mender has been around for a while and has a lot to offer and because it enforces the “Dual Copy” strategy they are really able to optimize for this specific use case. The Mender project has also put a lot of effort on integration tests that run on real-hardware (BBB and RPi3) and qemu, and I really get that feeling when using it (it just works).

It is a big plus that the deployment management server is integrated in the project and the connection from client to server is seamless. It is relatively easy to setup the server due to usage of docker and docker-compose.

Of course it does not fit everybody. Maybe it is not possible to deploy a “Dual Copy” strategy on your device (due to size constraints) or image based updates are not possible due to bandwidth costs but if you are thinking of deploying a “Dual Copy” strategy on you device then it is probably best to choose a project that focuses on that specific use-case.
